#971876 - 05/16/13 11:56 PM A clutch pedal with an OEM feel!
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
A while back, I tore out my clutch setup and re-designed it with the hopes of reducing pedal effort and making the car more comfortable to drive. The results were surprisingly good, and now I am producing the setup for the more popular F-body hydraulics. I have personally driven and have heard from a few people that the traditional setup is a bit too stiff.

http://sickspeedmonte.com/Clutch.html

Currently, the setup only really supports the dual diaphragm booster. I am working on modifying the setup for the single diaphragm booster, and there has been a successful and simple work-around for a single diaphragm in the mean time. For more details, visit the website above.

#971888 - 05/17/13 01:54 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Dec 2007
Posts: 6,180
SSLance Offline
10+ Year
SSLance  Offline
10+ Year
Member

Joined: Dec 2007
Posts: 6,180
Peoria, AZ
I offered up my car (and left knee) to be a test mule for the SSM clutch pedal and I want to thank Bernie for coming up with this idea. I LOVE it!!

I've been driving around with it now since last Saturday and it just makes the car so much nicer to drive...especially in traffic and at stop lights.

I promise to post up some pics and maybe a video soon trying to show the effort level needed to depress the clutch and the engagement point in my setup.


Lance
1985 Monte Carlo SS Street Car
#971891 - 05/17/13 02:57 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Thanks for helping to pioneer this new setup Lance, you and Adam have both been a huge help to me.

#972268 - 05/20/13 07:59 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Nov 2012
Posts: 326
SSeabee Offline
Member
SSeabee  Offline
Member

Joined: Nov 2012
Posts: 326
Wilmington, DE
Yea I saw Adam's this past Saturday, pretty slick.

#972730 - 05/24/13 01:56 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Apr 2008
Posts: 1,112
84ss355*4spd Offline
10+ Year
84ss355*4spd  Offline
10+ Year
Member

Joined: Apr 2008
Posts: 1,112
Edmonton,AB,Canada
what year f body pedal are you modifying? my pedal feels like a honda pedal lol with the hydraulic ram bearing. like no effort at all to push the pedal. just something to think about.


84ss current restoration
86 ss gone
85 ss new
85 z28 tpi
[Linked Image][Linked Image][Linked Image]
#973023 - 05/28/13 01:26 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
I build the pedal from scratch. What master do you use? I have heard from quite a few people that their pedals are too stiff.

#974478 - 06/10/13 04:14 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Apr 2008
Posts: 1,112
84ss355*4spd Offline
10+ Year
84ss355*4spd  Offline
10+ Year
Member

Joined: Apr 2008
Posts: 1,112
Edmonton,AB,Canada
i use the 84 camaro master or 4th generation camaro. i strongly recomend the ram bearing very nice feel.i used the camaro pedal with the stock monte pedal braket. nice clean setup .i dont even feel the clutch release lol cause its so smooth.i will post some pics


84ss current restoration
86 ss gone
85 ss new
85 z28 tpi
[Linked Image][Linked Image][Linked Image]
#974900 - 06/14/13 03:55 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
The mechanical advantage still is what it is. Theres nothing magic about that bearing. It has a cross sectional area just like the master and the ratio of the two is your mechanical advantage. If it's so high to make a stiff clutch feel like a honda, it wont release far enough. Maybe you just have a soft pressure plate to begin with? I assume we are talking about your 4 speed? My setup uses kinematics to increase the mechanical advantage as spring pressure increases. If your pedal is satisfactory, then you dont need to make a change; but I dont think that throwout will cure the heavy T56 pedal and certainly not for the LT1 T56.

Besides that, the TOB is $150 more than the current pedal price and you'll still have to figure out pedals. I'd rather have the wear item be cheaper and more readily available personally.

#977503 - 07/10/13 11:57 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
UPDATE:

Bad news first: Unfortunately I had to raise the shipping price to $25. I've been eating $10-15 in shipping on each kit that I've sold so far.

Good news: There is a Single Diaphragm kit available now! Prices are:

Dual Diaphragm booster compatible kit: $200+25 shipping
Single (or dual) diaphragm booster compatible kit: $215+25 shipping

I think I have enough material to make another 4 or 5 kits at this price. I will be taking my templates to a machine shop or two to get prices on water jetting a few of the pieces, and then I will have to adjust the price accordingly.

#984200 - 09/26/13 10:19 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Another update smile

I have been working with another member to CNC the master cylinder relocation bracket. Now I won't have to put 12+ hours of fabrication time into each setup and I can turn them around a lot faster.

Pricing has rearranged just a bit, in that shipping is reduced back to where it was (Flat rate boxes FTW!) and the cost to make these went up... it ends up being the same price.

I know the price seems a little steep compared to other pedals, but I just hope that you'll consider what you get for your money. This is more than just a pedal, you get the master cylinder relocation bracket as well, which is what allows this setup to function so well.

This product will continue to develop a bit more, with CNC cutting of the pedal arm next on the table.

#984209 - 09/27/13 12:52 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Dec 2007
Posts: 6,180
SSLance Offline
10+ Year
SSLance  Offline
10+ Year
Member

Joined: Dec 2007
Posts: 6,180
Peoria, AZ
Will the new CNC designed piece work with the 12" Booster?


Lance
1985 Monte Carlo SS Street Car
#984239 - 09/27/13 12:22 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Yes, the booster is no longer of concern with the new design.

#987138 - 11/06/13 02:44 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jan 2006
Posts: 2,242
Sixtoes1313 Offline
Member
Sixtoes1313  Offline
Member

Joined: Jan 2006
Posts: 2,242
Abingdon, Maryland
Wanted to say what a cool piece this thing is! Very happy with the overall feel and application of mine compared to a traditional pedal solution offered by others! It's in a class of it's own. I've had issues with my aftermarket mcleod master cylinder hitting the control arm due to the extended length of the aftermarket unit. An f body size master has no issues!



LsX: DO IT~ 11.32 @120mph
#1037396 - 04/07/16 01:44 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: May 2004
Posts: 941
BladeOfAnduril27 Offline
15+ Year
BladeOfAnduril27  Offline
15+ Year
Member

Joined: May 2004
Posts: 941
Doylestown, PA
Will this work with a T5? I'm assuming it would... Thanks


~ Matt H.

1988 Monte Carlo SS w/ T-tops, White with gray int, 350, Summit cam, World Torquer S/R heads, Holley St. Dominator intake, Edelbrock 600cfm carb, Champion 3-row alum radiator, ramchargers, 200-r4 with CK Shift Kit, billet servo, 2200 stall, Afterburner headers, Pypes 2.5" with x-pipe, Violator mufflers (stock exit), S10 front brake swap.
#1037461 - 04/09/16 01:19 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Apr 2008
Posts: 1,112
84ss355*4spd Offline
10+ Year
84ss355*4spd  Offline
10+ Year
Member

Joined: Apr 2008
Posts: 1,112
Edmonton,AB,Canada
I used my ram bearing on the t5 and 4 speed I had . I said It feels like a Honda because its easy to push the pedal and hold it . No more Lincage to deal with around headers smile . Had the z bar Lincage originally and I hated the pedal feel . Your kit I'm sure works well no doubt .


84ss current restoration
86 ss gone
85 ss new
85 z28 tpi
[Linked Image][Linked Image][Linked Image]
#1037926 - 04/18/16 12:55 PM Re: A clutch pedal with an OEM feel! [Re: 84ss355*4spd]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Originally Posted By: BladeOfAnduril27
Will this work with a T5? I'm assuming it would... Thanks


Matt, I'm not sure if you have emailed me about this in the past (my email address is on my page), but I will answer here so all can see.

I have had people use it with all kinds of transmissions. The current kit works with any of the F-body master cylinders. That gives you a few different bore diameters to work with. You get 1.0 inch of stroke, so you can figure out the fluid displaced with the cylindrical volume equation:

V = ((pi*D^2)/4)*S where V = volume, D = bore diameter and S = stroke (1").

You can then use that volume to figure out the stroke at the slave. Often, we don't have enough information about the slave or pressure plate to know how much stroke is needed, so you figure out what master is recommended or works well with that setup and determine the volume for that master, working back to a bore diameter that works with 1" of stroke.

The other option, which will be out soon, is a pedal kit that works with a Tilton 76 series or a Wilwood aftermarket clutch master cylinder. These aftermarket masters are popular with some of the F-body kits out there and are available in a variety of bore diameters. Some people have used those masters with my bracket, and it ends up poking out from the firewall a good bit and is more expensive than it needs to be. I currently have two kits that are about to begin testing, and if all goes well, this setup will be available in a couple of weeks.

Originally Posted By: 84ss355*4spd
I used my ram bearing on the t5 and 4 speed I had . I said It feels like a Honda because its easy to push the pedal and hold it . No more Lincage to deal with around headers smile . Had the z bar Lincage originally and I hated the pedal feel . Your kit I'm sure works well no doubt .


I've only ever felt a few mechanical linkage setups, and I agree, it wasn't something I would want to drive every day. Even a bone stock 1970 Chevy truck had an annoyingly stiff pedal.

#1038242 - 04/23/16 01:59 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Nov 2008
Posts: 305
gmguy3car Offline
Authorized Vendor
gmguy3car  Offline
Authorized Vendor
Member

Joined: Nov 2008
Posts: 305
Silverdale,Wa
<POST DELETED>

Last edited by Z65_Paul; 05/05/16 01:04 AM. Reason: Post Deleted




#1038637 - 05/03/16 05:10 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: May 2004
Posts: 941
BladeOfAnduril27 Offline
15+ Year
BladeOfAnduril27  Offline
15+ Year
Member

Joined: May 2004
Posts: 941
Doylestown, PA
Originally Posted By: SickSpeedMonte
Originally Posted By: BladeOfAnduril27
Will this work with a T5? I'm assuming it would... Thanks


Matt, I'm not sure if you have emailed me about this in the past (my email address is on my page), but I will answer here so all can see.

I have had people use it with all kinds of transmissions. The current kit works with any of the F-body master cylinders. That gives you a few different bore diameters to work with. You get 1.0 inch of stroke, so you can figure out the fluid displaced with the cylindrical volume equation:

V = ((pi*D^2)/4)*S where V = volume, D = bore diameter and S = stroke (1").

You can then use that volume to figure out the stroke at the slave. Often, we don't have enough information about the slave or pressure plate to know how much stroke is needed, so you figure out what master is recommended or works well with that setup and determine the volume for that master, working back to a bore diameter that works with 1" of stroke.

The other option, which will be out soon, is a pedal kit that works with a Tilton 76 series or a Wilwood aftermarket clutch master cylinder. These aftermarket masters are popular with some of the F-body kits out there and are available in a variety of bore diameters. Some people have used those masters with my bracket, and it ends up poking out from the firewall a good bit and is more expensive than it needs to be. I currently have two kits that are about to begin testing, and if all goes well, this setup will be available in a couple of weeks.


Thanks for the reply Bernie. I'm looking into a T5 swap but the budget is tight. I'm seriously considering trying to make your kit work with my budget. I'll see how much is left once I pick up the trans itself. Thanks again.


~ Matt H.

1988 Monte Carlo SS w/ T-tops, White with gray int, 350, Summit cam, World Torquer S/R heads, Holley St. Dominator intake, Edelbrock 600cfm carb, Champion 3-row alum radiator, ramchargers, 200-r4 with CK Shift Kit, billet servo, 2200 stall, Afterburner headers, Pypes 2.5" with x-pipe, Violator mufflers (stock exit), S10 front brake swap.
#1038647 - 05/03/16 08:19 PM Re: A clutch pedal with an OEM feel! [Re: gmguy3car]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
POST DELETED

Last edited by Z65_Paul; 05/05/16 01:05 AM. Reason: Post Deleted
#1038648 - 05/03/16 08:27 PM Re: A clutch pedal with an OEM feel! [Re: BladeOfAnduril27]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Originally Posted By: BladeOfAnduril27
Thanks for the reply Bernie. I'm looking into a T5 swap but the budget is tight. I'm seriously considering trying to make your kit work with my budget. I'll see how much is left once I pick up the trans itself. Thanks again.


Awesome man sounds good! Glad to help.

#1038664 - 05/04/16 04:14 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Nov 2008
Posts: 305
gmguy3car Offline
Authorized Vendor
gmguy3car  Offline
Authorized Vendor
Member

Joined: Nov 2008
Posts: 305
Silverdale,Wa
<POST DELETED>

Last edited by Z65_Paul; 05/05/16 01:02 AM. Reason: Post Deleted
#1038674 - 05/04/16 01:15 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
<Post Partially Deleted>

Regarding the height of the clutch pedal, it is a little higher than the brake pedal which isn't uncommon even in factory stock vehicles. Everything is a trade-off. Here are the SSM pedals in SSLance's car.



I have also made a modification to my clutch pedal which spaces it a bit further to the left after receiving some customer feedback. I don't claim to have a perfect product (there's no such thing), but what I do try my very best to do is make sure that every customer is happy. I make everything in my spare time in my garage. Things have evolved for the better over time and I'm sure they will continue to do so.

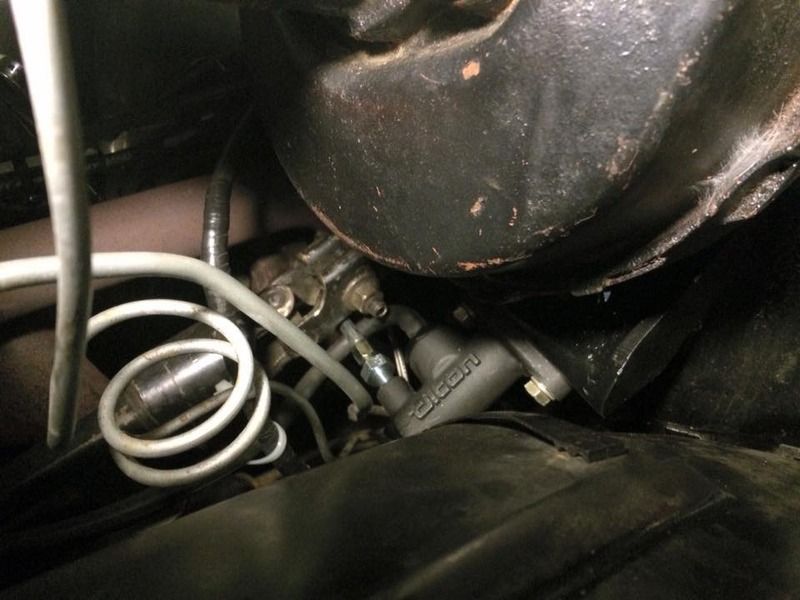

Here is the new setup for universal masters installed in the SickSpeedMonte.





In this mock-up picture, disregard the plumbing. If you use the 76-series master pictured, you have to use banjo fittings to clear the steering shaft. You would use a 76 series if you plan to plumb your remote reservoir with an AN fitting rather than a barb fitting or if you need the added clearance provided by the side outlet port. Otherwise, use the 75-series master with the remote reservoir adapter, such as the Tilton 75-875U, or a similar Wilwood such as the 260-10372.


Last edited by Z65_Paul; 05/05/16 01:03 AM. Reason: Post Partially Deleted
#1038687 - 05/04/16 11:38 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD

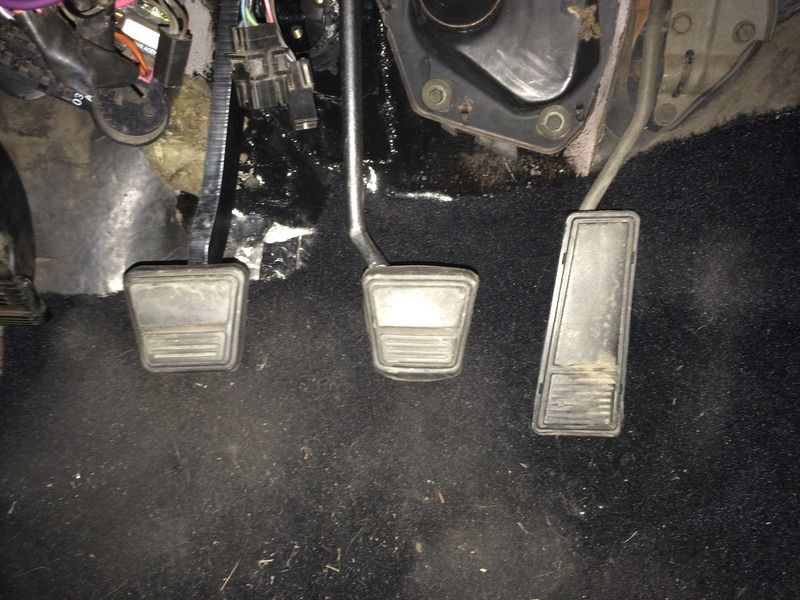

Here's how it came out with the banjos


#1038693 - 05/05/16 01:05 AM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Dec 1999
Posts: 6,872
Z65_Paul Offline
Administrator
20+ Year
Z65_Paul  Offline
Administrator
20+ Year

Member

Joined: Dec 1999
Posts: 6,872
McDade, TX
Thread Cleaned up. There will be no more Vendor / Vendor bickering.


[Linked Image]
PaulC PaulC@MonteCarloSS.com - - - - Album Pictures
Original Owner, Custom two-tone T-Toped 86 SS - Webmaster of:
[Linked Image]
#1038714 - 05/05/16 02:07 PM Re: A clutch pedal with an OEM feel! [Re: SickSpeedMonte]
Joined: Nov 2000
Posts: 2,384
Tunedss86 Offline
15+ Year
Tunedss86  Offline
15+ Year
Member

Joined: Nov 2000
Posts: 2,384
Eastern Virginia
Just when it was getting interesting.
