#866345 - 04/11/11 05:34 PM Oil & Temp Gauges not working
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
My temp gauge has worked since I swapped in my 350 but only when it overheated because of low coolant. It doesn't work now that the coolant is at proper levels now.

Oil gauge doesn't work either. The plug that goes onto the oil sensor which is on the back of my older 350 block by distributor looks like a 3prong plug. This plug is off of my wire harness loom from the drivers side. There is also this same looking plug that is coming off of the harness for all the emissions junk.

Any other ways to get these gauges working or how to re-wire them?

all gauges worked when the 305 was in there


87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
#866347 - 04/11/11 05:54 PM Re: Oil & Temp Gauges not working [Re: Mike87monte]
Joined: Dec 2007
Posts: 5,405
SSLance Offline
Member
SSLance  Offline
Member

Joined: Dec 2007
Posts: 5,405
Smithville, MO

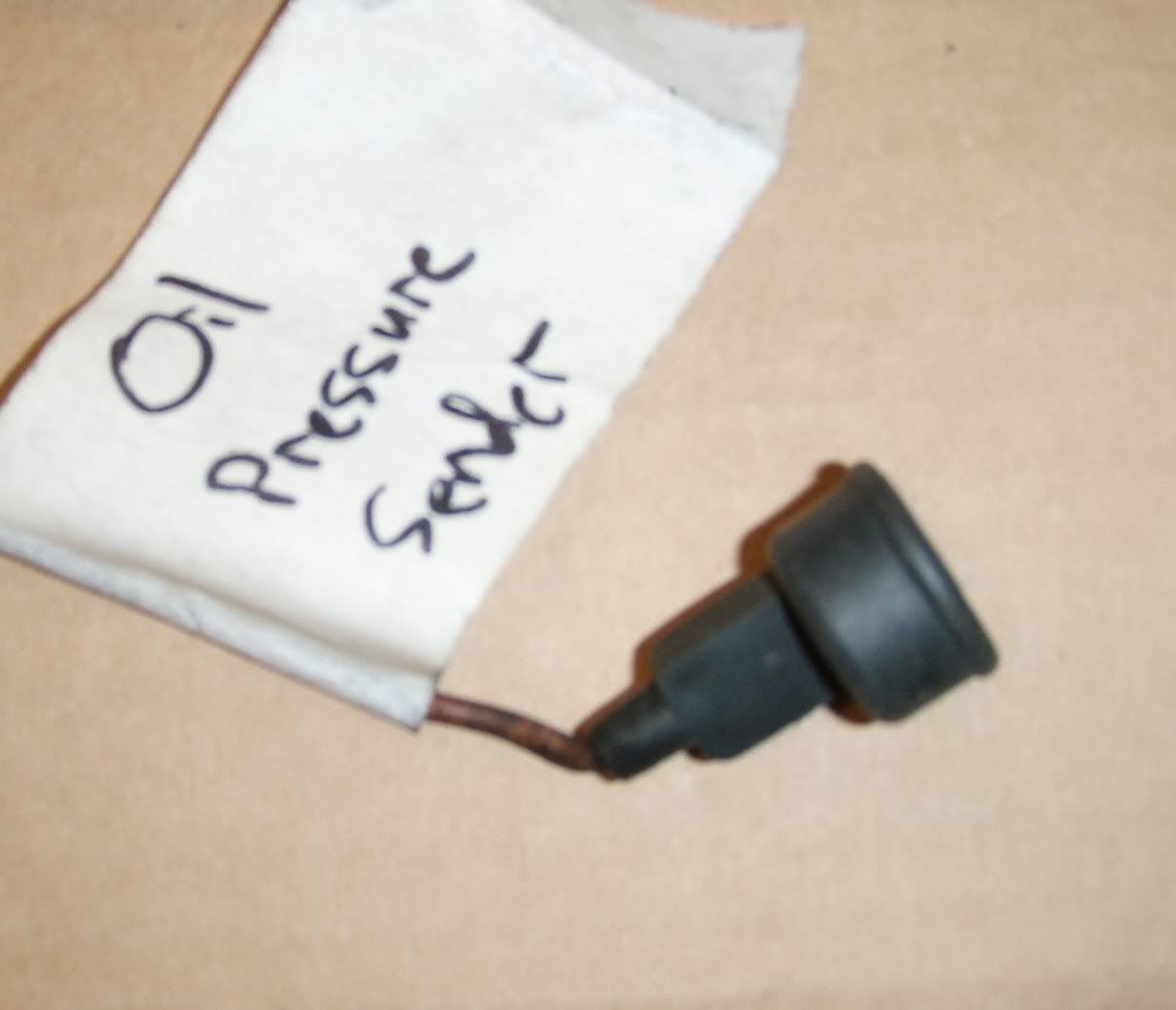

This is the connector that runs to your oil pressure gauge in your dash.



It used to be plugged into the sensor just above your oil filter. Sorry I don't have a picture of the sensor.

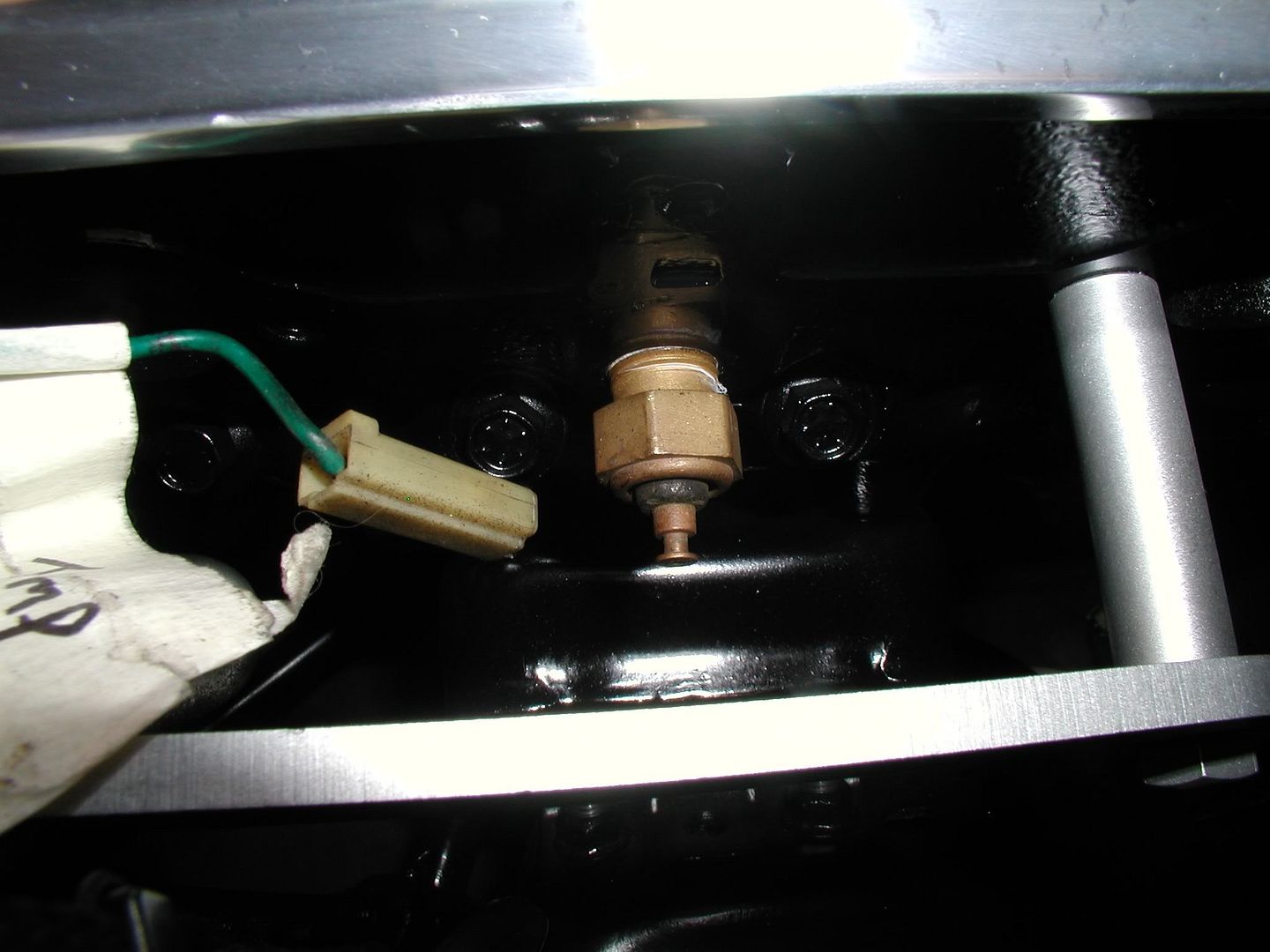

This is the connector that runs to the water temp gauge in your dash



It should be plugged into the sensor on the passenger side head




There is also an oil pressure sensor on the choke circuit that won't let the choke work until there is oil pressure.

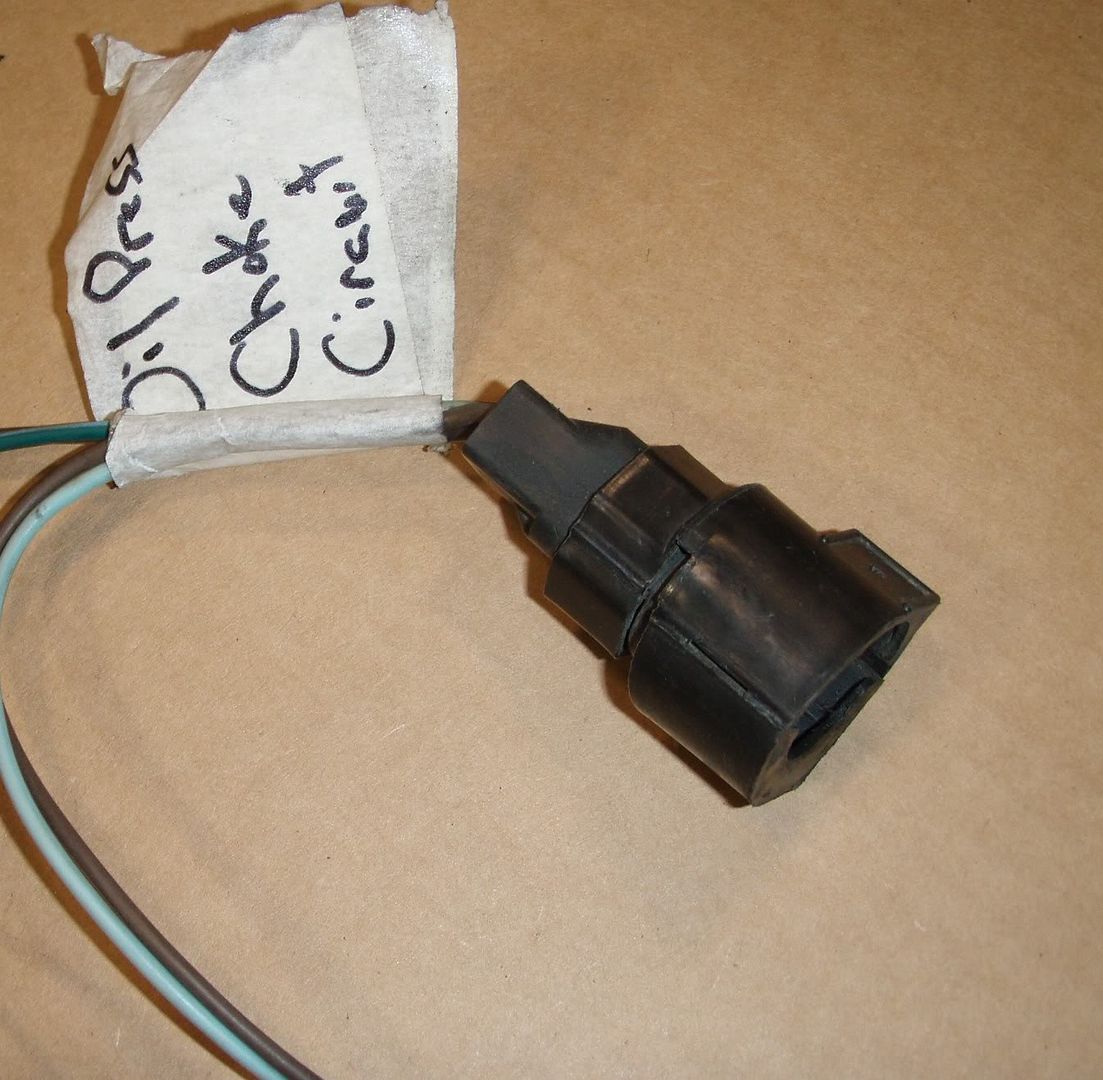

This is the connector



It plugs into the sensor screwed into the back of the block by the distributor.



This does not affect the oil pressure gauge though some people move their oil pressure sensor from the area by the oil filter up to this port do to adding headers and space restraints.


Lance
1985 Monte Carlo SS Street Car
#866350 - 04/11/11 06:04 PM Re: Oil & Temp Gauges not working [Re: SSLance]
Joined: May 2009
Posts: 210
richan Offline
Member
richan  Offline
Member

Joined: May 2009
Posts: 210
little rock,ar
See there all the harness pictures did come in handy. LOL good job ! ! !


87 MCSS Aerocoupe, 2 84 Elco V6 & V8, 87 Elco V8
#866351 - 04/11/11 06:05 PM Re: Oil & Temp Gauges not working [Re: richan]
Joined: Dec 2007
Posts: 5,405
SSLance Offline
Member
SSLance  Offline
Member

Joined: Dec 2007
Posts: 5,405
Smithville, MO
shaking my head... laugh


Now I just need to get them all in one place and maybe get it stickied so I don't have to run and fetch every time there is a question...


Lance
1985 Monte Carlo SS Street Car
#866357 - 04/11/11 07:25 PM Re: Oil & Temp Gauges not working [Re: SSLance]
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
Lance,

I have that plug (choke) plugged to my oil sensor in the back of the block above the oil filter, to the drivers side of the distributor. Is this the reason why my oil pressure gauge isnt working?

I have that green line attached to my temp sensor in the drivers side head. There is coolant passing it as when I loosen it, coolant starts to leak out.


87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
#866371 - 04/11/11 09:08 PM Re: Oil & Temp Gauges not working [Re: SSLance]
Joined: Dec 2007
Posts: 5,405
SSLance Offline
Member
SSLance  Offline
Member

Joined: Dec 2007
Posts: 5,405
Smithville, MO
You need this connector



plugged into the brass looking sensor that used to be down by your oil filter in order for your gauge to read oil pressure.



If the green temp gauge wire is plugged into the sensor in the head and the gauge isn't working, I guess either the sensor has failed or the wire is broken somewhere.


Lance
1985 Monte Carlo SS Street Car
#866441 - 04/12/11 03:09 AM Re: Oil & Temp Gauges not working [Re: SSLance]
Joined: Apr 2010
Posts: 6
autowolf80 Offline
New Member
autowolf80  Offline
New Member

Joined: Apr 2010
Posts: 6
wichita, KS
If the temp sensor only showed when too high temp I would replace it since its not working with coolant and lower temperatures. I've heard that an air bubble can make then not work also, but mainly with supermarket ones and the adapters used on them. Make sure to check your wires for cracked insulation and grounding out on something metal. That will make them not work.


1988 Monte LS. 76 350 sbc, Weiend stealth intake, Holly 650 carb, 350 trans, stock rear end.
#866484 - 04/12/11 11:56 AM Re: Oil & Temp Gauges not working [Re: autowolf80]
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
Lance,

The sensor on my 305 that was on the back of block to the drivers side of the distributor is the oil pressure sensor correct? I assumed this was the oil sensor and I just put it back in the same location on my 350. The sensor however is a 2-prong sensor and I still have that plugyou have pictured above, but it is only a 1-prong plug. Do I need to get a new oil pressure sensor (1-prong) to match the 1-prong plug pictured above?

I will just get a new temp sensor as I can't imagine they would be anymore than $10.


87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
#866490 - 04/12/11 12:30 PM Re: Oil & Temp Gauges not working [Re: Mike87monte]
Joined: Dec 2007
Posts: 5,405
SSLance Offline
Member
SSLance  Offline
Member

Joined: Dec 2007
Posts: 5,405
Smithville, MO

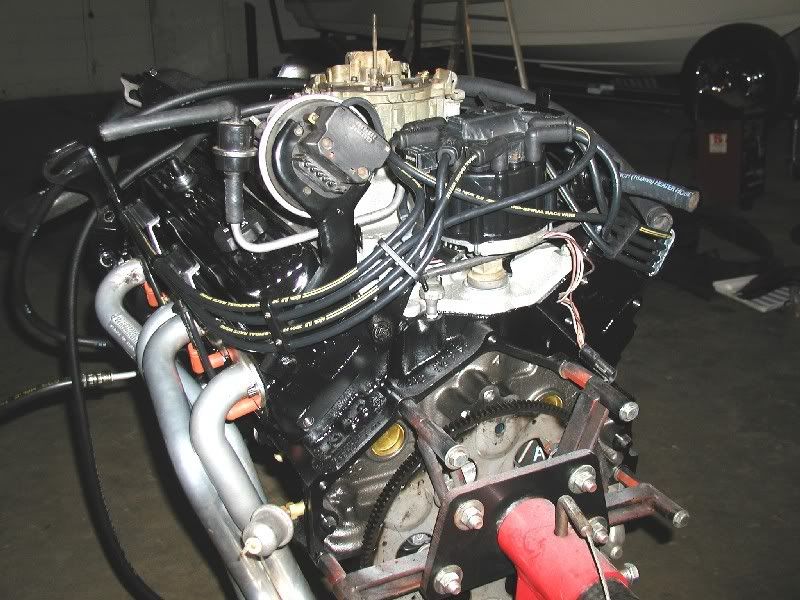

Behind the header in this picture you can see the oil pressure sensor that feeds the gauge on our cars.



It is screwed into a port just above the oil filter. Most of us that put headers on our cars have to put a fitting or two between it and the block to get it to clear the headers.

You need the single prong plug above plugged into a sensor like this in order for your gauge to work.

The sensor you are talking about up by the distributor just opens up the choke circuit once oil pressure is detected. It does not send a signal to the gauge.

You can also see the one I'm talking about here



Lance
1985 Monte Carlo SS Street Car
#866491 - 04/12/11 12:30 PM Re: Oil & Temp Gauges not working [Re: Mike87monte]
Joined: Aug 2001
Posts: 14,862
Gruvin Offline
Moderator
15+ Year
Gruvin  Offline
Moderator
15+ Year

Member

Joined: Aug 2001
Posts: 14,862
Texas
http://static.1aautoimages.com/catimage/95/main.JPG

you need the silver one on the right side of these three in this image, it screws in on the drivers side down above the oil filter. it is a single prong plug like the connector shown above... this is an oil pressure sensor or sending unit

the other one by the distributor is an oil pressure switch.


My first SS! Sold Jan 2004
[Linked Image]
87 SS bought 9-5-04: Sold 6-18-2010 - project 87 finds a new home with another undisclosed MonteCarloSS.com member!
#866493 - 04/12/11 12:44 PM Re: Oil & Temp Gauges not working [Re: Gruvin]
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
man that is going to be a PIA to get to with the motor in there. Well thanks for the good news, but thanks for the work I got ahead of me!

Just ordered Holley 534-2 Temp Sensor and Standard Motor Products Oil Pressure Sesnor PS154

Last edited by Mike87monte; 04/12/11 01:31 PM.

87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
#866507 - 04/12/11 02:28 PM Re: Oil & Temp Gauges not working [Re: Mike87monte]
Joined: Dec 2007
Posts: 5,405
SSLance Offline
Member
SSLance  Offline
Member

Joined: Dec 2007
Posts: 5,405
Smithville, MO
Where was the sender on the 305 you took out?


Lance
1985 Monte Carlo SS Street Car
#866522 - 04/12/11 04:02 PM Re: Oil & Temp Gauges not working [Re: SSLance]
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
on top of the block near the dizzy. connected to it was the 2 prong plug. i thought that was the oil sensor, but clearly i was wrong lol


87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
#866700 - 04/13/11 01:59 AM Re: Oil & Temp Gauges not working [Re: Mike87monte]
Joined: Sep 2007
Posts: 3,178
jigsaw Offline
Member
jigsaw  Offline
Member

Joined: Sep 2007
Posts: 3,178
Laredo TX
Originally Posted By: Mike87monte
on top of the block near the dizzy. connected to it was the 2 prong plug. i thought that was the oil sensor, but clearly i was wrong lol

thats oil pressure sensor, the one by the oil filter is the oil pressure sending unit, one is for the oil light n the other one for the gauge

#866775 - 04/13/11 12:05 PM Re: Oil & Temp Gauges not working [Re: jigsaw]
Joined: Nov 2006
Posts: 684
Mike87monte Offline
Member
Mike87monte  Offline
Member

Joined: Nov 2006
Posts: 684
Mansfield, MA
I'm looking for the gauge to work. I have a HV pump so I'm going to go ahead and say my pressure is fine, but I just want the gauge to work.


87' Monte Carlo SS

350 .060" over, Thumpr Cam, RPM Air-Gap, 600cfm Carb, T5 5spd, 8.5" 3:73 rear, 18" Chrome IROC's, 2" Steel Cowl Hood, Belltech Spindles, Eibach Springs
