#220140 - 03/03/06 01:39 AM STICKY: Frame repair. How I Did it
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
This is how I fixed those rotted body mounts on the frame. This process applies to all the mount locations but for times sake I'll just show the one.

The rotted hole after wire wheel


The 3" Flat washer with some alignment marks


A little hammering and the washer starts to conform




Then trace and cut the hole


Tack the washer into place



#220141 - 03/03/06 01:54 AM Re: Frame repair. How I Did it
Joined: Feb 2005
Posts: 3,159
benwa Offline
Member
benwa  Offline
Member

Joined: Feb 2005
Posts: 3,159
Monaville, WV
Very nice.

That's how mad87 was descirbing it wasn't he?

I like that idea looks like it works great.



(My sig courtesy of sickspeedmonte)
Check out all my rides/projects at:
http://www.cardomain.com/id/benwa454
#220142 - 03/03/06 02:03 AM Re: Frame repair. How I Did it
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
Part 2.

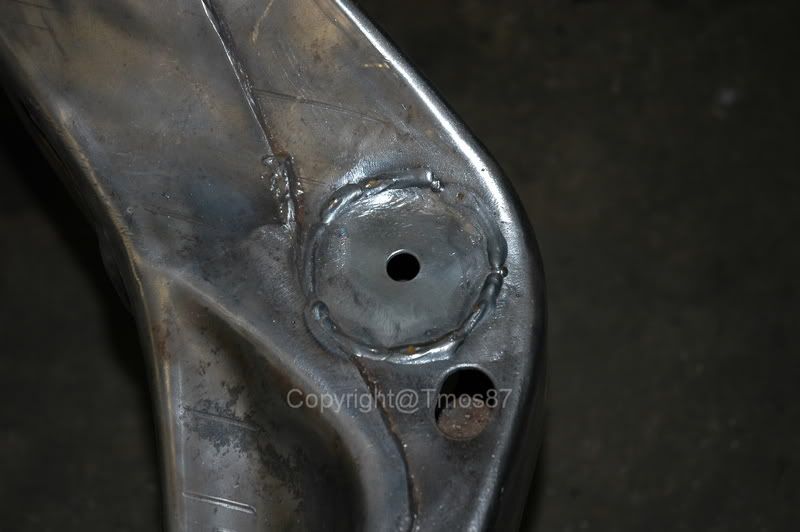

finish weld all around the washer
Good penatration is criticlal

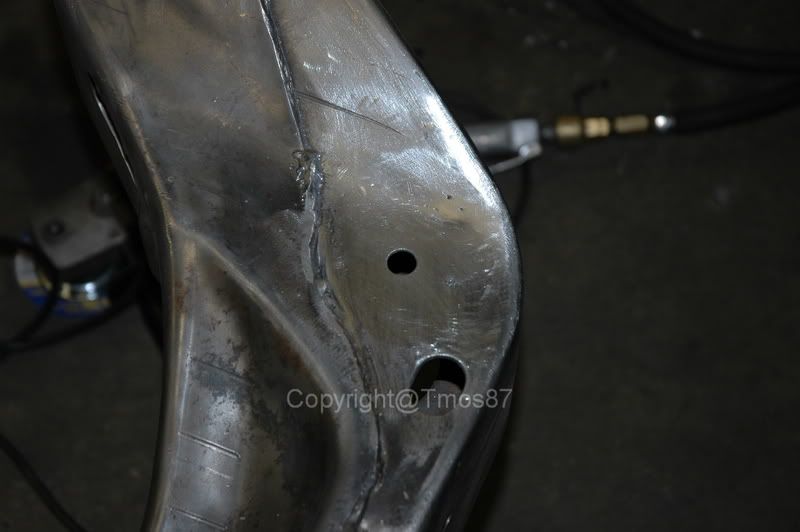

Dress the weld


Punch the hole

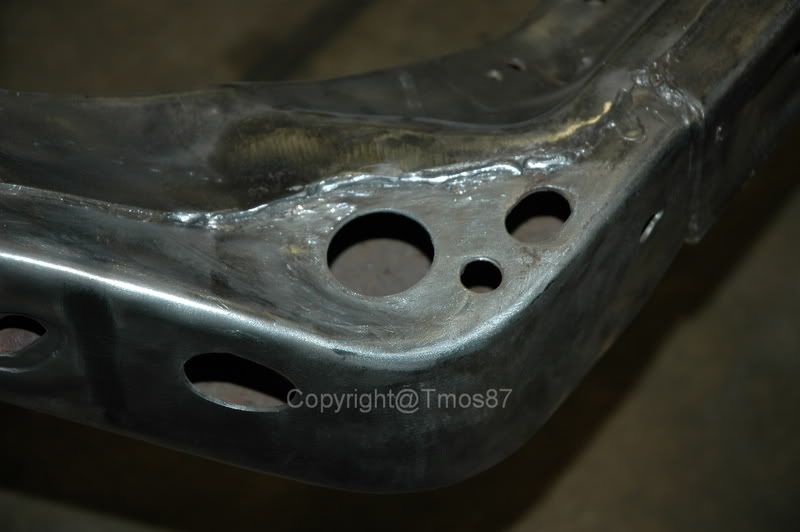

Finished hole.


Like I said before this process was done on four of my mount locations. I have some pics of the others also. I missed a couple pics in the steps but used pics of the opposite side to fill in the blanks. I'm happy with the results and the strength of the repair. Thanks to Mad87SS for the washer idea. the washers I used were the same thickness as the frame steel. Looking forward to paint next week. If all goes as planned I'll have more progress pics next week. Tom

#220143 - 03/03/06 02:06 AM Re: Frame repair. How I Did it
Joined: Jul 2004
Posts: 502
Mack Offline
10+ Year
Mack  Offline
10+ Year
Member

Joined: Jul 2004
Posts: 502
Hillsborough,NJ
Looks great! Thanks for the pics.


[Linked Image]
Greg
LY6 6.0L with 4L80 trans
8.5 w/3:73s
http://www.fquick.com/87SS
#220144 - 03/03/06 03:21 AM Re: Frame repair. How I Did it
Joined: Nov 2004
Posts: 2,106
mrapii Offline
Member
mrapii  Offline
Member

Joined: Nov 2004
Posts: 2,106
Waipahu
A great post and a terrific job. These are the kind of posts that give us real useful knowledge.

#220145 - 03/03/06 04:19 AM Re: Frame repair. How I Did it
Joined: Dec 2005
Posts: 562
nitelite Offline
Member
nitelite  Offline
Member

Joined: Dec 2005
Posts: 562
Tampa, FL
Awesome Tom!!


Scott - '85 SS, t-tops, grey bucket/console, all power, posi, and currently in midst of frame-off rebuild.
#220146 - 03/03/06 12:51 PM Re: Frame repair. How I Did it
Joined: May 2005
Posts: 2,975
1984 MonteManiac Offline
Member
1984 MonteManiac  Offline
Member

Joined: May 2005
Posts: 2,975
tax york
Yes, this will help me on my GTO resto I may have one body mount to repair.... I know I have some to do on the monte....



I hate know it alls and doubting toms.
#220147 - 03/03/06 01:12 PM Re: Frame repair. How I Did it
Joined: Jul 2003
Posts: 9,207
SickSpeedMonte Offline
15+ Year
SickSpeedMonte  Offline
15+ Year
Member

Joined: Jul 2003
Posts: 9,207
MD
Very nice work. You cant even tell there was a repair done, and thats the way to go!

I am not familiar with that punch... Im guessing you just crank down on the bolt and it cuts the hole out for you?

#220148 - 03/03/06 01:29 PM Re: Frame repair. How I Did it
Joined: Jan 2003
Posts: 411
runupfront Offline
Member
runupfront  Offline
Member

Joined: Jan 2003
Posts: 411
Eatonton, GA
Really impressive work - repaired the way it should be repaired.

Super welding job too - I know I can't weld like that!

I think the pics and step-by-step should go into a tech article here on the board.


Pete Scuderi
1986 AeroCoupe
#220149 - 03/03/06 04:59 PM Re: Frame repair. How I Did it
Joined: Feb 2005
Posts: 3,159
benwa Offline
Member
benwa  Offline
Member

Joined: Feb 2005
Posts: 3,159
Monaville, WV
Yep great tech article on a how to frame repair.

I'm wondering though is THAT many body mount holes were bad lol

WHAT was holding the body?????????

I truelly understand now why you needed a frame off resto. Good job on not crushing it because of that problem.

I mean I just wonder when body mounts are that bad doesn't the body flop up and down by itself and you can like grab it and lift up on it?



(My sig courtesy of sickspeedmonte)
Check out all my rides/projects at:
http://www.cardomain.com/id/benwa454
#220150 - 03/03/06 06:26 PM Re: Frame repair. How I Did it
Joined: Jul 2000
Posts: 1,708
Duts87SS Offline
15+ Year
Duts87SS  Offline
15+ Year
Member

Joined: Jul 2000
Posts: 1,708
Spanish Fort, AL USA
Outstanding work!!!


Dustin
87 SS
[Linked Image]
#220151 - 03/03/06 06:54 PM Re: Frame repair. How I Did it
Joined: Jul 2004
Posts: 502
Mack Offline
10+ Year
Mack  Offline
10+ Year
Member

Joined: Jul 2004
Posts: 502
Hillsborough,NJ
I just had to look at those pictures again, great work! I can only hope my repair comes close to your outcome. I did have a couple of questions.

1. I too would like to know what that tool was you were using to enlarge the hole.

2. What did you use to cut the holes in the frame? I figured a cutoff tool would be too large, maybe a dremel? That could take some time.

3. How did you weld the washers in, tack weld like welding body panels skipping around until the entire washer is welded in or did you run 1 bead all the way around the washer?

Thanks, and again great work. I agree, put this in the tech section.


[Linked Image]
Greg
LY6 6.0L with 4L80 trans
8.5 w/3:73s
http://www.fquick.com/87SS
#220152 - 03/04/06 06:31 AM Re: Frame repair. How I Did it
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
Well thanks a lot guys, glad you like the pics. been a busy day. So I'm a little late getting back to the board.
Mack. The punch I used is a Greenlee punch, used by electricians for punching holes in electrical boxes. sizes for 1/2" and up. the largest I have used is a 5". I used a 1 1/4", it's just a little bit larger than the original hole. Just keep tightening the bolt and it draws the cutter through the metal. The ones I use at work are hydrolic and much easyer to use. They leave a nice burr free, perfectly round hole.
I welded continuous bead from tack to tack. And since I ground the weld smooth, I turned the heat up kind of high for penatration. Looking at it from the bottom I can see that I got full pen. and won't ever have to worry about failure of the weld.
Thanks again for the responces. This board is just a great place to be. Tom

#220153 - 03/04/06 10:42 AM Re: Frame repair. How I Did it
Joined: Aug 2001
Posts: 14,862
Gruvin Offline
Moderator
15+ Year
Gruvin  Offline
Moderator
15+ Year

Member

Joined: Aug 2001
Posts: 14,862
Texas
Glad all that info is on here and archived now since soo many of us have frame rot issues. This is a truely outstanding idea...


My first SS! Sold Jan 2004
[Linked Image]
87 SS bought 9-5-04: Sold 6-18-2010 - project 87 finds a new home with another undisclosed MonteCarloSS.com member!
#220154 - 04/10/06 10:29 PM Re: Frame repair. How I Did it
Joined: Jul 2000
Posts: 1,063
irkk1 Offline
15+ Year
irkk1  Offline
15+ Year
Member

Joined: Jul 2000
Posts: 1,063
chicopee mass
A+ effort what a job ! HMMM I hope ill be able to do that ...

#220155 - 05/02/06 04:44 PM Re: Frame repair. How I Did it
Joined: Apr 2006
Posts: 100
NY03SS Offline
Member
NY03SS  Offline
Member

Joined: Apr 2006
Posts: 100
Northeast
Nice job on the repair. I will definitely bookmark this page for future reference. Out of curiosity, what gauge wire did you use in your welder? If I have to do this I want to make sure I get full heat penetration to ensure a sturdy weld.
Thanks!!


Later,

Bri
#220156 - 05/02/06 06:21 PM Re: Frame repair. How I Did it
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
The wire is linchon .030" I set to a heavy medium high amperage and a medium speed on the feed. Wow. I'm a poet. Anyway I got full penetration and needn't worry about weld failure. Make sure to coat the under side of the weld as well.
And thank all of you for the compliments.

Tom

#550261 - 03/27/08 07:24 PM Re: Frame repair. How I Did it [Re: tmos87]
Joined: Oct 2005
Posts: 1,151
bladerunnerss Offline
Member
bladerunnerss  Offline
Member

Joined: Oct 2005
Posts: 1,151
NYC
Beautiful, very professional. you should etch "repaired with pride in the U.S.A. by Tom" in there somewhere.

#550490 - 03/28/08 03:45 AM Re: Frame repair. How I Did it [Re: bladerunnerss]
Joined: Dec 2003
Posts: 12,857
ss4ever Offline
Moderator
15+ Year
ss4ever  Offline
Moderator
15+ Year

Member

Joined: Dec 2003
Posts: 12,857
Shelbina, Missouri
WOW, old topic back from the deal.

Tom, this would make for a wonderful DIY writeup!


1983 Monte Carlo SS Turnkey ZZ4/700R4, Dakota Digital Instrument Cluster, 77k mile car. Many more mods to come soon.
#550578 - 03/28/08 02:28 PM Re: Frame repair. How I Did it [Re: ss4ever]
Joined: Dec 2003
Posts: 4,128
SS Ninja Offline
15+ Year
SS Ninja  Offline
15+ Year
Member

Joined: Dec 2003
Posts: 4,128
Stoughton, MA
 Originally Posted By: ss4ever
WOW, old topic back from the deal.



Yeah it is! I saw a post from Anthony and had to double-check the date! Anybody heard from the Maniac recently?


1987 Monte Carlo SS: The toy
Click here for my build thread
1987 Monte Carlo LS: Daily Driver
Build thread for the LS
#550579 - 03/28/08 02:42 PM Re: Frame repair. How I Did it [Re: SS Ninja]
Joined: Jul 2000
Posts: 15,079
85_SS Offline
Moderator
15+ Year
85_SS  Offline
Moderator
15+ Year

Member

Joined: Jul 2000
Posts: 15,079
Ontario, Canada
I'd be the guilty party - I remembered it a week or so back and made it a sticky. I agree - it would make a great DIY writeup!


[Linked Image]
1985 Chevrolet Monte Carlo SS
5.7 LITRE / TES Headers / SShaker Hood / WC T-5 5-Speed
1970 Pontiac GTO
Orbit Orange Judge Re-creation / YZ RAIII 400 / M21 4-Speed
#550706 - 03/28/08 09:43 PM Re: Frame repair. How I Did it [Re: ss4ever]
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
 Originally Posted By: ss4ever
WOW, old topic back from the dead.

Tom, this would make for a wonderful DIY writeup!


Thanks guys. Let me get the quarter panel project done, and I'll do a better write up for the DIY forum.

Tom

#552739 - 04/03/08 03:47 PM Re: Frame repair. How I Did it [Re: tmos87]
Joined: Jul 2007
Posts: 121
valvefloat ss Offline
Member
valvefloat ss  Offline
Member

Joined: Jul 2007
Posts: 121
St.Joseph, MI
Great work! Great discussion. I will need this eventually.

Does anyone know what kind of steel is used for frames? 1030, 1040, ASTM???


1985 SS, 358 010, art carr 700r4, Comp Xtreme 4x4 cam, 50SeriesFlows,Afterburner headers, ported SR Torquers, 750 3310 Holley, Auburn Posi, 3.73, 3in exhaust, dual electic fans.
#554354 - 04/07/08 09:09 PM Re: Frame repair. How I Did it [Re: valvefloat ss]
Joined: Mar 2007
Posts: 57
dukeofbluz Offline
Member
dukeofbluz  Offline
Member

Joined: Mar 2007
Posts: 57
Rockford, IL
Sure the holes 1 1/4" ? and not 1 1/2"?

Duke

#556805 - 04/14/08 02:26 AM Re: Frame repair. How I Did it [Re: dukeofbluz]
Joined: Dec 2005
Posts: 752
tmos87 Offline
Member
tmos87  Offline
Member

Joined: Dec 2005
Posts: 752
Canton TWP MI
 Originally Posted By: dukeofbluz
Sure the holes 1 1/4" ? and not 1 1/2"?

Duke


The GreenLee punches I use are for electrical work, meaning 1-1/4" I,D.(Pipe fitting) the actual hole is about 1-1/2" for the O.D.

Tom
